Price : AZN 2,208
Min Order: 1 - 5 Pcs
Lead Time: 6 - 9 Days
Port : CIF / Kualanamu International Airport
Terms : T / T, Western Union, Money Gram, Wise, Xoom
Products : Ori and Ready in stock
Email :
[email protected]
Buying Mimaki TS500-1800 Gen5 Printhead from indoelectornic is 100% safe, because the purchase of productsat indoelectronic provides
official genuine products and 100% money back guarantee.
To purchase online visit us: www.indoelectronic.com
IndoElectornic sells : Printer, Printhead, Camera, Camcorder, Drone, Medical Electronic

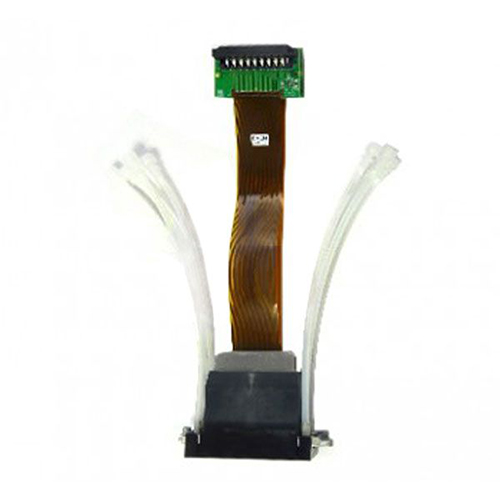

Mimaki TS500-1800 Gen5 printhead Assy Type-D - M014140
This printhead is suitable for Mimaki TS500-1800 & TX500-1800 series printers.
Printer Compatibility: Mimaki TS500-1800 / TX500-1800B / TX500-1800DS
Part No.: M014140
Remarks: Original
Specifications:
Model
PRH-MIM-006
Head materials SST, Nickel alloy, Epoxy Adhesive
Number of nozzles Four 320 nozzles
Nozzle spacing 0.1693 mm
Nozzle density up to 600 npi
Nozzle plate surface Coated SST
Piezo type D33 Stacked PZT
Native drop volume 7 pl
Drop volume range 7 - 35 pl
Drop velocity 7 m/s
Jetting frequency Up to 60 kHZ
Temperature control Integrated Heater and Thermistor
Operator temperature range Up to 80° C
Life 100 billion actuations per nozzle
Dimensions 89 x 25 x 69 mm (not include cables)
